TH9010 Parallel 8-channel Hipot Tester

 8-channel parallel output of withstand voltage,

   and each channel is non-interfering

 Output: AC: 5kV/10mA; DC: 6kV/5mA

 Insulation resistance test voltage: 0.10kV -1.00kV

 Each channel can be extended with four-channel scanners,

   support 4 four-channel scanners at most which means one

   instrument can be extended to 128 channels

 Four-channel scanner supports contact check function

 7-inch 800×480 dot-matrix, TFT-LCD display

 Chinese and English operation interface and concise

   interface operation design

 Enhanced security: electric shock protection

 Rapid discharge and arc detection function

 Arbitrarily set voltage rising time and test time in 999.9

   seconds; freely set waiting time for insulation resistance

 Key-Lock Function

 Display the PASS/FAIL result of each channel independently

   and the total result simultaneously

 Store 100 test files and each file can hold at most 20 testing

   steps




......
TH90101 8-unit four-channel scan expander

■ Expand each channel of TH9010 to 4 channels

 TH9010 supports 4 four-channel scanners at

   most which means one instrument can be extended

   to 128 channels

 Four-channel scanner supports contact check function


......
TH9010A Parallel 4-channel Hipot Tester

 4-channel parallel output of withstand voltage,

   and each channel is non-interfering

 Output: AC:5kV/10mA; DC: 6kV/5mA

 Insulation resistance test voltage: 0.10kV -1.00kV

 Each channel can be extended with four-channel scanners,

   support 4 four-channel scanners at most which means one

   instrument can be extended to 64 channels

 Four-channel scanner supports contact check function

 7-inch 800×480 dot-matrix, TFT-LCD display

 Chinese and English operation interface and concise

   interface operation design

 Enhanced security: electric shock protection

 Rapid discharge and arc detection function

 Arbitrarily set voltage rising time and test time in 999.9

   seconds; freely set waiting time for insulation resistance

 Key-Lock Function

 Display the PASS/FAIL result of each channel independently

   and the total result simultaneously

 Store 100 test files and each file can hold at most 20 testing

   steps







......

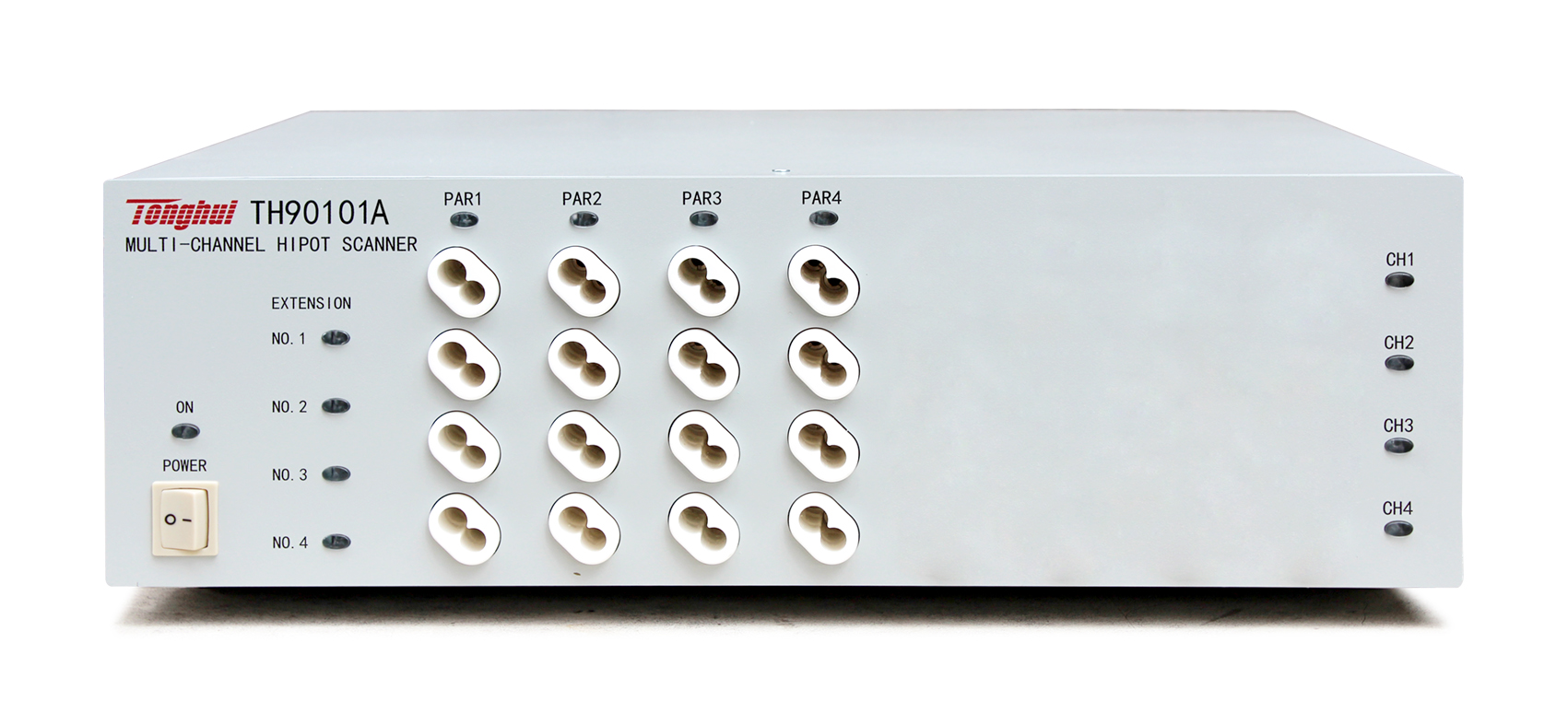

TH90101A 4-unit four-channel scan expander

■ Expand each channel of TH9010A to 4

   channels

 TH9010A supports 4 four-channel scanners at

   most which means one instrument can be extended to

   64 channels

 Four-channel scanner supports contact check function



......
TH90102 16-channel high voltage scanning box

■ Expand the single-channel withstand voltage insulation tester to 16 channels

■ Can be connected to multiple expanders simultaneously

■ Channel continuity detection function

■ Support contact check function


......
