HighPerformance WithstandVoltage Insulation Tester
Parallel Multi-Channel Type
TH9010

 8-channel parallel output of withstand voltage,

   and each channel is non-interfering

 Output: AC: 5kV/10mA; DC: 6kV/5mA

 Insulation resistance test voltage: 0.10kV -1.00kV

 Each channel can be extended with four-channel scanners,

   support 4 four-channel scanners at most which means one

   instrument can be extended to 128 channels

 Four-channel scanner supports contact check function

 7-inch 800×480 dot-matrix, TFT-LCD display

 Chinese and English operation interface and concise

   interface operation design

 Enhanced security: electric shock protection

 Rapid discharge and arc detection function

 Arbitrarily set voltage rising time and test time in 999.9

   seconds; freely set waiting time for insulation resistance

 Key-Lock Function

 Display the PASS/FAIL result of each channel independently

   and the total result simultaneously

 Store 100 test files and each file can hold at most 20 testing

   steps




......

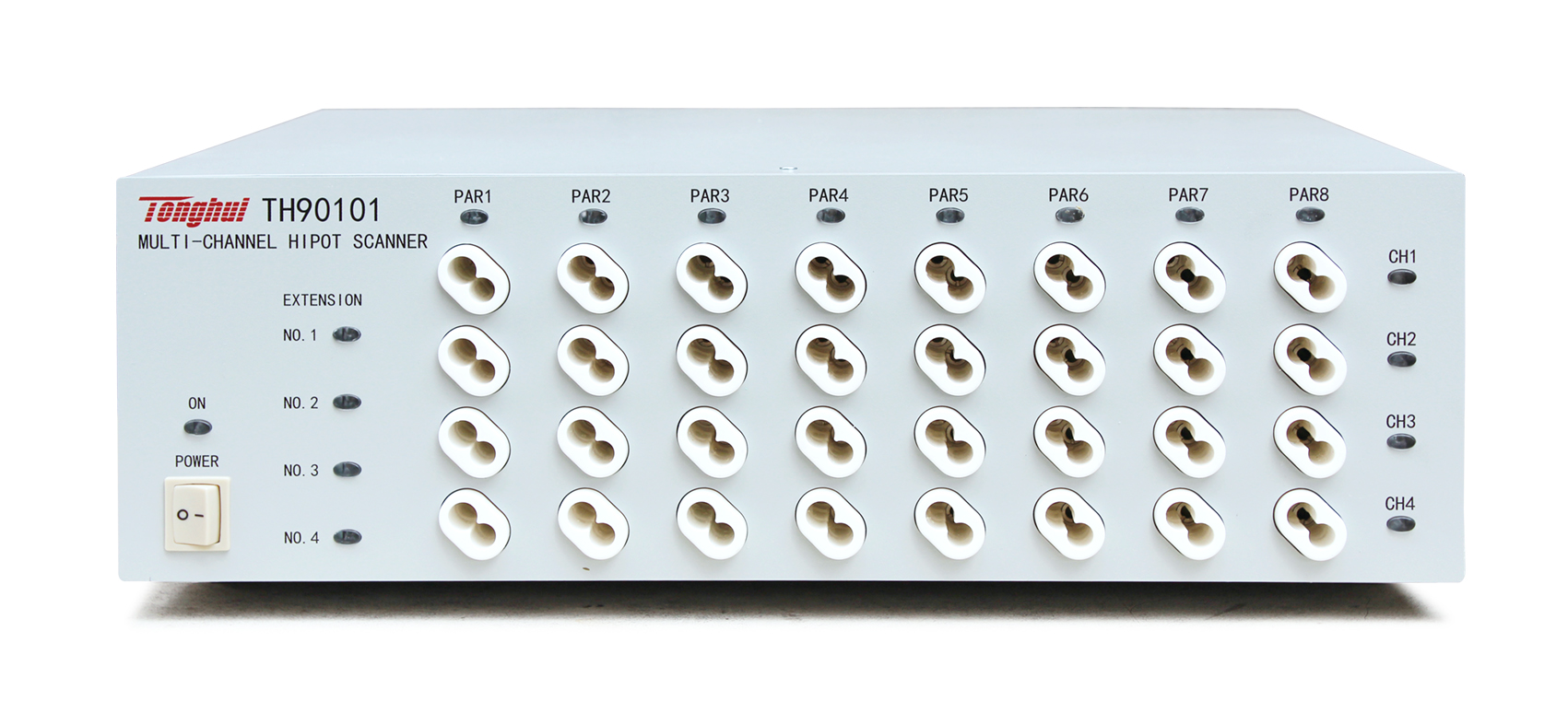

TH90101

■ Expand each channel of TH9010 to 4 channels

 TH9010 supports 4 four-channel scanners at

   most which means one instrument can be extended

   to 128 channels

 Four-channel scanner supports contact check function


......
TH9010A

 4-channel parallel output of withstand voltage,

   and each channel is non-interfering

 Output: AC:5kV/10mA; DC: 6kV/5mA

 Insulation resistance test voltage: 0.10kV -1.00kV

 Each channel can be extended with four-channel scanners,

   support 4 four-channel scanners at most which means one

   instrument can be extended to 64 channels

 Four-channel scanner supports contact check function

 7-inch 800×480 dot-matrix, TFT-LCD display

 Chinese and English operation interface and concise

   interface operation design

 Enhanced security: electric shock protection

 Rapid discharge and arc detection function

 Arbitrarily set voltage rising time and test time in 999.9

   seconds; freely set waiting time for insulation resistance

 Key-Lock Function

 Display the PASS/FAIL result of each channel independently

   and the total result simultaneously

 Store 100 test files and each file can hold at most 20 testing

   steps







......
High Power Type
TH9110

 High power: AC 5kV / 100mA / 500VA output

 ARC detection function

 Contact check function (OSC)

 Breakdown voltage test function

 One-key screen capture function

 One-key recording function

 Rear panel output function to facilitate automated production

   line testing

 Storage: 100 files, up to 50 steps per file

 High resolution: 7 inch 800 × 480 dots, TFT-LCD display

 Brand-new operation interface, Chinese and English menu

■ RS232、LAN、USB HOST、USB DEVICE、HANDLER

   interface

 High-level security:

 High-voltage floating output design, in line with the safety

   requirements of EU standards EN50191 (only TH9110)

 Electric shock protection function

......
TH9110A

 High power: AC 5kV / 100mA / 500VA output

 ARC detection function

 Contact check function (OSC)

 Breakdown voltage test function

 One-key screen capture function

 One-key recording function

 Rear panel output function to facilitate automated production

   line testing

 Storage: 100 files, up to 50 steps per file

 High resolution: 7 inch 800 × 480 dots, TFT-LCD display

 Brand-new operation interface, Chinese and English menu

■ RS232、LAN、USB HOST、USB DEVICE、HANDLER

   interface

 High-level security:

 Electric shock protection function


......
TH9130A
......
High Voltage Type
TH9120A

 Output voltage: 0.05-10.0kV AC

■ Output power: 200VA

 ARC detection function

 High resolution: 7 inch 800 × 480 dots, TFT-LCD display

 Chinese and English menu operation interface

 OSC check function

 One-click screen capture function

 Rear panel output function for automatic test of production

   line

 Storage: 100 files, up to 50 steps per file

 Pin detection

 Breakdown voltage test: AC can reach 10kV, resolution 10V

   and Normal stepping (divided according to test steps)

......
TH9120D

 Output voltage: 0.05-12kV DC

■ Output power: 120VA

 ARC detection function

 High resolution: 7 inch 800 × 480 dots, TFT-LCD display

 Chinese and English menu operation interface

 OSC check function

 One-click screen capture function

 Rear panel output function for automatic test of production

   line

 Storage: 100 files, up to 50 steps per file

 Pin detection

 Breakdown voltage test: AC can reach 10kV, resolution 10V

   and Normal stepping (divided according to test steps)

......
